1/2" 50 Ohm Superflex Coax Cable

Regular price $2.61
Sale price $2.61 Regular price
Unit price
Ask a question

Ask a Question

* Required fields

Size guide Share

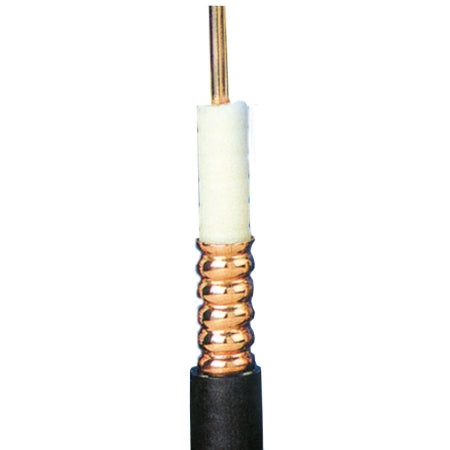

The RFS 811026-001 1/2 inch 50 Ohm coax cable is superflexible and less prone to kinks because of its spiral copper corrugated outer conductor. The superflex cable features a 1.18-inch bending radius. This coaxial cable transmission line has a copper-clad aluminum center conductor. Maximum frequency capacity is 11.7 GHz.

The RFS 1/2 inch superflexible coax cable is available in bulk and is priced per foot.



Technical Specs

  • Peak Power
  • 20.5 kW
  • Attenuation/100 ft @ 30 MHz
  • 0.548 dB
  • Inner Conductor
  • Copper Clad Aluminum
  • Qty/ Uom
  • 1 Foot
  • Outer Conductor Material
  • Copper
  • Attenuation/100 ft @ 450 MHz
  • 2.22 dB
  • Average Power @ 894 MHz
  • 0.818 kW
  • Attenuation/100 ft @ 50 MHz
  • 0.71 dB
  • Capacitance Per Foot
  • 25.2 pF
  • Diameter Over Jacket
  • 0.54 in
  • Minimum Bending Radius
  • 1.25 in
  • DC Resistance (ctr/shld) Ohms
  • 0.88/1.04
  • Attenuation/100 ft @ 894 MHz
  • 3.21 dB
  • Bending Moment
  • 1.3 lb-ft
  • RF Impedance
  • 50 Ohms
  • Mid-Span Strip Tool
  • knife
  • Attenuation/100 ft @ 960 MHz
  • 3.34 dB
  • Attenuation/100 ft @ 1700 MHz
  • 4.57 dB
  • Comments
  • Standard
  • Attenuation/100 ft @ 1920 MHz
  • 4.89 dB
  • Average Power @ 30 MHz
  • 4.8 kW
  • Manufacturer
  • RFS
  • VOP
  • 82 %
  • Average Power @ 450 MHz
  • 1.18 kW
  • Average Power @ 50 MHz
  • 3.7 kW
  • Flat Plate Crush Strength
  • 110 PSI
  • Attenuation/100 ft @ 150 MHz
  • 1.25 dB
  • Average Power @ 800 MHz
  • 0.869 kW
  • Average Power @ 960 MHz
  • 0.787 kW
  • Inductance
  • 0.063 µH/ft
  • Cable Weight Per Foot
  • 0.14 lb
  • Tensile Strength
  • 146 lb
  • Attenuation/100 ft @ 2.0 GHz
  • 5.01 dB
  • Attenuation/100 ft @ 824 MHz
  • 3.07 dB
  • DC Breakdown Voltage
  • 2.5 kV
