1/2" Foam CELLFLEX Cable
Regular price
$1,840.00
Sale price
$1,840.00
Regular price
Unit price

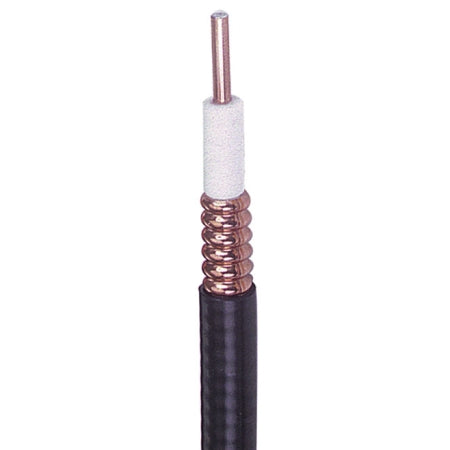

The RFS 810918-001CELLFLEX 1/2 inch 50 Ohm coax cable with foam dielectric meets all of your standard coax cable needs. This transmission line has an annular corrugated copper outer conductor with a copper-clad aluminum center conductor. Maximum frequency capacity is 8.8 GHz.
The RFS 1/2 inch standard coax cable is available in bulk and is priced per foot.
Technical Specs
-
Average Power @ 50 MHz
- 5.61 kW
-
Mid-Span Strip Tool
- TESSCO# 452336
-
Minimum Bending Radius
- 5 in
-
Peak Power
- 38 kW
-
Attenuation/100 ft @ 50 MHz
- 0.462 dB
-
Cable Weight Per Foot
- 0.15 lb
-
Comments
- Standard
-
Flat Plate Crush Strength
- 110 PSI
-
DC Breakdown Voltage
- 4 kV
-
Average Power @ 30 MHz
- 7.27 kW
-
Capacitance Per Foot
- 23.2 pF
-
Attenuation/100 ft @ 894 MHz
- 2.07 dB
-
VOP
- 88 %
-
RF Impedance
- 50 Ohms
-
Outer Conductor Material
- Copper
-
Attenuation/100 ft @ 450 MHz
- 1.44 dB
-
Diameter Over Jacket
- 0.64 in
-
Strip Tool
- TESSCO# 490025
-
Bending Moment
- 3.7 lb-ft
-
Attenuation/100 ft @ 1700 MHz
- 2.93 dB
-
Attenuation/100 ft @ 30 MHz
- 0.356 dB
-
Inner Conductor
- Copper Clad Aluminum
-
Qty/ Uom
- 1 Foot
-
Average Power @ 450 MHz
- 1.8 kW
-
Average Power @ 960 MHz
- 1.21 kW
-
DC Resistance (ctr/shld) Ohms
- 0.48 / 0.59
-
Inductance
- 0.058 µH/ft
-
Attenuation/100 ft @ 150 MHz
- 0.81 dB
-
Average Power @ 894 MHz
- 1.25 kW
-
Average Power @ 800 MHz
- 1.33 kW
-
Attenuation/100 ft @ 1920 MHz
- 3.13 dB
-
Attenuation/100 ft @ 960 MHz
- 2.15 dB
-
Tensile Strength
- 247 lb
-
Attenuation/100 ft @ 2.0 GHz
- 3.2 dB
-
Attenuation/100 ft @ 824 MHz
- 1.98 dB
-
Manufacturer
- RFS
