7/8" Foam CELLFLEX Cable

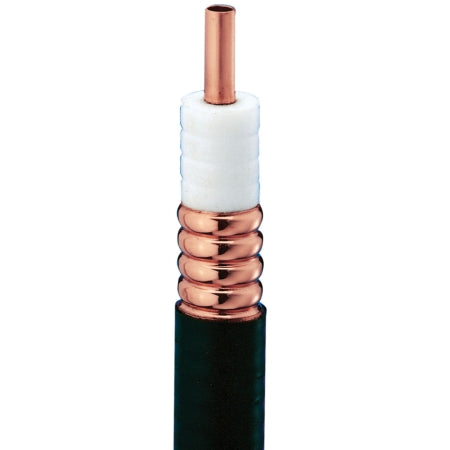

The RFS 810921-701 Cellflex 7/8 inch coax cable has improved attenuation and VSWR over previous RFS cable. This 50 Ohm coax cable has a foam dieletic, annular corrugated copper outer conductor, and a copper tube center conductor. The transmission line operates with a maximum frequency capacity of 5.0 GHz.

The RFS 7/8 inch coaxial cable is available in bulk and is priced per foot.

Technical Specs

  • Additional Notes
  • Improved attentuation and VSWR over previous cable
  • Attenuation/100 ft @ 150 MHz
  • 0.425 dB
  • Attenuation/100 ft @ 2.0 GHz
  • 1.68 dB
  • Attenuation/100 ft @ 960 MHz
  • 1.13 dB
  • Diameter Over Jacket
  • 1.09 in
  • Tensile Strength
  • 324 lb
  • Cable Weight Per Foot
  • 0.34 lb
  • Inductance
  • 0.056 µH/ft
  • Bending Moment
  • 9.6 lb-ft
  • Inner Conductor
  • Copper
  • Attenuation/100 ft @ 894 MHz
  • 1.09 dB
  • Average Power @ 894 MHz
  • 2.79 kW
  • Manufacturer
  • RFS
  • Qty/ Uom
  • 1 Foot
  • Mid-Span Strip Tool
  • TESSCO #499065
  • Flat Plate Crush Strength
  • 80 PSI
  • Attenuation/100 ft @ 450 MHz
  • 0.753 dB
  • RF Impedance
  • 50 Ohms
  • Strip Tool
  • TESSCO #471565 or #423014
  • Average Power @ 960 MHz
  • 2.69 kW
  • Average Power @ 30 MHz
  • 16.2 kW
  • Average Power @ 800 MHz
  • 2.96 kW
  • DC Resistance (ctr/shld) Ohms
  • .39/.32
  • Attenuation/100 ft @ 50 MHz
  • 0.242 dB
  • Outer Conductor Material
  • Copper
  • Capacitance Per Foot
  • 22.5 pF
  • Attenuation/100 ft @ 1700 MHz
  • 1.54 dB
  • Attenuation/100 ft @ 30 MHz
  • 0.186 dB
  • Attenuation/100 ft @ 824 MHz
  • 1.04 dB
  • VOP
  • 90 %
  • Peak Power
  • 85 kW
  • Minimum Bending Radius
  • 10 in
  • Average Power @ 450 MHz
  • 4.02 kW
  • DC Breakdown Voltage
  • 6 kV
  • Average Power @ 50 MHz
  • 12.5 kW
